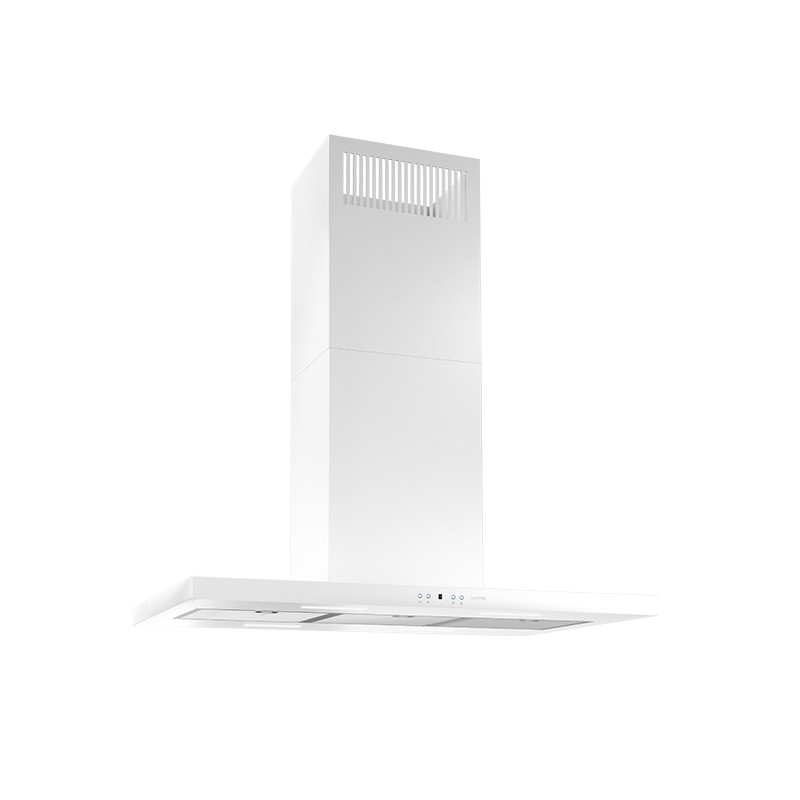

LAPETEK JONA Slim-V X1 90
90 cm, (AC) island white
578ACX1
€1,631.50
(€1,300.00 tax excl)
Tax included
Operating functions
The stylish backlit Soft-touch buttons work logically and are pleasant to use.
Powerful LED lights illuminate pleasantly and evenly the entire surface below. In addition, the luminaires come standard with a three-stage dimming function (EC- ja X3-models) which allows you to adjust the lighting to...
Accessories and Cleaners
Product Details
Operating functions
The stylish backlit Soft-touch buttons work logically and are pleasant to use.
Powerful LED lights illuminate pleasantly and evenly the entire surface below. In addition, the luminaires come standard with a three-stage dimming function (EC- ja X3-models) which allows you to adjust the lighting to suit the mood and other lighting around the cooker hood.
NOTE! The grease filter can be washed in the dishwasher (only use the lowest temperature, max 60 degrees).
The easiness of installation has been taken into account when designing the attachmenting the new model. There is enough space inside the frame for lateral displacements of the pipeing.

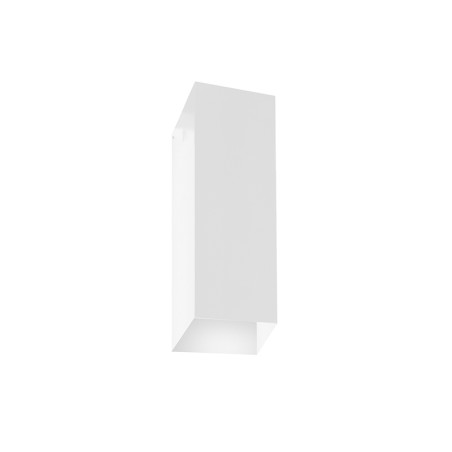

For rooms with high ceilings, an extension part is available that allows the LAPETEK JONA SLIM-V-X to be installed up to a room height of 329 centimeters. In all maximum room heights, by default, the stove top is 900 mm from the floor and the bottom edge of the kitchen hood is 650 mm from the stove top, i.e. the bottom edge of the kitchen hood is at a height of 1550 mm as seen from the floor. If the kitchen hood is installed at a different height, it also affects the minimum and maximum room heights.
LAPETEK JONA Slim-V-X1 and X2 cooker hoods are compatible with Vilpen's 230V / 50Hz, top-of-the-line extractor with 1-phase AC / EC motor, or a technically equivalent type of motor. JONA Slim-X hoods are used directly to remove steam forming in the kitchen, as well as for ventilation carried out with a top vacuum cleaner, not for controlling ventilation machines.
Installing the cooker hood is easy and quick to do with clear instructions and installation pictures.
Package contains
- cooker hood
- AC-motor
- telescopic chimney
Dimensions and technical data
| In scope of supply | |
| In scope of supply | - cooker hood - AC-motor - telescopic chimney |
| Ventilation system | X2-EC - kitchen+bath extraction |
| Ventilation system | X1-AC - kitchen extraction |
| Ventilation system | X2-AC - kitchen+bath extraction |
| Cooker hood color | White |
| Ventilation system | X3 - central ventilation |
| Ventilation system | X1-EC - kitchen extraction |
| Ventilation system | X1-AC - keittiöpoisto |
| Cooker hood color | Valkoinen |
| Suitable for the room height | 249 - 282 cm |
| Cooker hood width | 90 cm |
| With the air chimney extension | max. 329 cm |
| Max. suction power | Riippuu huippuimurista |
| Max. Volume level | Riippuu huippuimurista |
| Motor power | Riippuu huippuimurista |
| Electrical connection | Socket 10 A |
| Electrical connection | Pistorasia 10 A |
| Lightning | LED 4 x 3 W / (4000 K) |
| Blast connection diameter | 150 / 125 mm |
| Blast connection diameter | 160 mm |
| Switch functions | Taustavalaistu Soft touch -näppäimistö - valot päälle / pois - perusnopeudet 1-3 (numeronäyttö kertoo valitun nopeuden) - intensiivitoiminto (5 min) - ajastettu sulkeminen (10 - 90 min) |
| ON/OFF function | Kyllä |
| Minimum installation height | 55 cm for electric stoves |
| Minimum installation height | 65 cm for gas stoves |
| Minimum installation height | 65 cm kaasuliedelle, 55 cm sähköliedelle |
| Fat filter | Washable metal |
| Fat filter | Pestävä metalli |
| Energy class | Riippuu huippuimurista |
| Warranty months | 24 |
